Fall Arrest — Lanyards

3M™ DBI-SALA® Nano-Lok™ Personal Self Retracting Lifeline, 3101208 is made from 19 mm (3/4") Dyneema® fibre and polyester web. Our 1.8 m single-leg lifeline has an aluminium rebar hook end, a quick connector for harness mounting and a smart-activating brake system.

• Extremely compact and lightweight single-leg personal self-retracting lifeline designed for working at height
• Smart activating brake system provides fall clearance as low as 1.2 m (4 ft.) - up to 4 m (13 ft.) less than lanyards
• Lightweight speed connect system reduces connect and disconnect time by up to 60%
• Durable nitrile rubber energy absorber cover designed to last 4 times longer than previous version
• Reduced energy absorber size is more user friendly and convenient compared to previous version
• 19 mm (3/4") Dyneema® fibre and polyester web lifeline
• AAF (Average Arrest Force) 400 daN & MAF (Maximum Arrest Force) 600 daN
• Equipped with 3M™ Connected Safety ID (CSID), a pre-programed RFID tag that makes it easier to track and manage equipment using the 3M™ Inspection and Asset Management System (system available by subscription)
• Weight capacity: Single User - 140 KG

EN360:2002

3M™ DBI-SALA® Nano-Lok™ Personal Self Retracting Lifeline, 3101298 is made from 19 mm (3/4") Dyneema® fibre and polyester web. Our 1.8 m twin-leg lifeline has aluminium rebar hook ends, a quick connector for harness mounting and a smart-activating brake system.

• Extremely compact and lightweight twin-leg personal self-retracting lifeline designed for working at height
• Smart activating brake system provides fall clearance as low as 1.2 m (4 ft.) - up to 4 m (13 ft.) less than lanyards
• Lightweight speed connect system reduces connect and disconnect time by up to 60%
• Durable nitrile rubber energy absorber cover designed to last 4 times longer than previous version
• Reduced energy absorber size is more user friendly and convenient compared to previous version
• 19 mm (3/4") Dyneema® fibre and polyester web lifeline
• AAF (Average Arrest Force) 400 daN & MAF (Maximum Arrest Force) 600 daN
• Equipped with 3M™ Connected Safety ID (CSID), a pre-programed RFID tag that makes it easier to track and manage equipment using the 3M™ Inspection and Asset Management System (system available by subscription)
• Weight capacity: Single User - 140 KG

EN360:2002

Our 3M™ Protecta® rope connecting lanyards are an ideal solution for the connecting element in a restraint system. Made from polyamide braided rope with safety stitching. Rope diameter 10.5mm.

• Use a 3M™ Protecta® Rope Restraint Lanyard as part of a restraint system to prevent the user from moving into an area where they may be exposed to a fall
• Sewn terminations with heat shrink tube protection provide greater durability and long product service life
• Single Leg
• Anchor connection type: Loops with Thimbles
• Harness connection type: Loops with Thimbles
• Length: 1.00 m

EN354:2010
EN365:2004

Our 3M™ Protecta® rope connecting lanyards are an ideal solution for the connecting element in a restraint system. Made from polyamide braided rope with safety stitching. Rope diameter 10.5mm.

• Use a 3M™ Protecta® Rope Restraint Lanyard as part of a restraint system to prevent the user from moving into an area where they may be exposed to a fall
• Sewn terminations with heat shrink tube protection provide greater durability and long product service life
• Single Leg
• Anchor connection type: Snap Hook
• Harness connection type: Snap Hook
• Length: 2.00 m

EN354:2010
EN365:2004

Our 3M™ Protecta® rope connecting lanyards are an ideal solution for the connecting element in a restraint system. Made from polyamide braided rope with safety stitching. Rope diameter 10.5mm.

• Use a 3M™ Protecta® Rope Restraint Lanyard as part of a restraint system to prevent the user from moving into an area where they may be exposed to a fall
• Sewn terminations with heat shrink tube protection provide greater durability and long product service life
• Twin Leg (Y-Type)
• Anchor connection type: Snap Hook
• Harness connection type: Snap Hook
• Length: 1.30 m

EN354:2010
EN365:2004

Fall Arrester
• Retractable fall arrest with 50mm webbing.
• Maximum length: 2.5 meters
• Incorporating a protective casing and Energy Absorber (45mm)
• Minimum breaking strength >15kN
• Conforms to EN360:2002

Energy absorbing lanyard with Scaff Hook.
• Length - 1.5 meters.
• 44mm wide polyester webbing which reduces the impact of fall to less than 6kN.
• Loops protected by an abrasion resistant tubular webbing.
• Conforms to EN355:2002 and tested per VG11 of PPE Directive 89/686/EEC.

SHOCK ABSORBING WEBBING LANYARD
• 1.8 mtr (Model: FA 30 304 18)
• 30mm wide webbing lanyard
• 35mm webbing shock absorber
• Karabiner at one end and scaffold hook at the other end
• Loops protected by abrasion resistant tubular webbing

Conforms to EN 355:2002 and tested as per VG 11
of PPE Directive 89/686/EEC

• 44mm wide elastic webbing
• 35mm wide shock absorber
• Karabiner at one end and scaffold hook at the other
• Loops protected by an abrasion resistant tubular webbing
• Energy absorber in 35 mm wide webbing which reduces the impact of the fall less than 6 kN
• 44 mm wide polyester expandable elasticated webbing lanyard
• Expanded length : 1.5 m , Relaxed length : 1 m

• 12mm Kernmantle rope with snap hook at one end and scaffold hook at the other end
• Loops protected by abrasion resistant thimbles
• Stitching protected by strong transparent sleeve
• Minimum breaking strength 22 kN
• Conforms to: EN 355

• Work Positioning Webbing Lanyard with Ring Adjuster
• Loops protected by an abrasion resistant tubular webbing
• Steel Karabiner at one end and steel snap hook at the other end
• Made up of 30mm diam polyester webbing
• Length 2.00 metres maximum
• Webbing: - Polyester
• Connector - Steel
• Ring Adjuster - Forged Alloy Steel
• Conforms to: EN 358:1999

The Latchways Rescue Pole is designed to be used by a third party. Should the user be unable to conduct a self-rescue, the third party can activate the Latchways PRD®’s built-in secondary descent release mechanism.
The overall length of the pole is 800 mm when retracted and 3400 mm when extended.

MSA’s Workman Rescuer provides fast, easy and intuitive fall protection with integral bi-directional retrieval capability. Not only does the Workman Rescuer arrest the fall, its retrieval capability allows the fallen worker to ascend or descend to a safe location. This durable, economical addition to the Workman Series of products offers fast installation and setup, ideal for applications where time and ease of use are a priority. The Workman Rescuer is also a stand-alone retractable device, as the carrying handle may be used as an anchorage attachment.
Exclusive integral bracket uses existing tripod pin, leaving fewer components to attach, or become damaged or misplaced. Fall protection/retrieval mode knob simply pulls and rotates to activate. Use this device as a component of a confined space system for one application and as a standard self-retracting lanyard for another.

• Experienced and even novice users can learn setup and operation quickly
• Effectively comparable size and weight to competitive products
• Great for OGP turnarounds, construction, utilities and other confined space applications
• Galvanized or stainless steel 5 mm wire rope
• Integral mounting bracket
• Color-coded switch for retrieval mechanism activation
• Ergonomic, stainless steel carrying handle can also be used as anchorage connection point
• Built-in shock absorber
• Robust aluminium housing with thermoplastic bumpers
• Self-locking swivel snaphook with load indicator•
• Stowable, foldable crank handle
• RFID-enabled
• Maximum arresting force 6kN
• Certified to EN 360, EN 1496, Class B

A fall restraint lanyard connection is used between the anchor point and the body harness to prevent the user from reaching the fall area and work positioning applications. MSA restraint lanyards are available in web and kernmantel rope.

• The loops at the ends are protected by an abrasion resistant covering Prevents the webbing from being damaged by the metallic contact of the connector
• 30mm Polyester Webbing
• Galvanized alloy steel screwgate carabiner
• The screwgate carabiner has a minimum breaking strength of 25 kN with a gate opening of 18mm
• Conforms to EN 354:2010 Personal fall protection equipment. Lanyards

The MSA lanyards are available in web and kernmantel rope configurations with a variety of connectors. Energy-absorbing lanyards provide a means of connection between the fall arrest attachment of MSA full body harnesses and a qualified anchorage pont. The energy absorber keeps fall arrest forces below 6 kN.

• Single leg configuration, twin-leg versions also available
• The Loops at the end are protected by an abrasion resistant covering to prevent the webbing from being damaged by the metallic contact of the connector
• Curved design of the scaffold hook gate allowing a more comfortable grip
• 30 mm polyester webbing
• Galvanized alloy steel screwgate carabiner
• The screwgate carabiner has a minimum breaking strength of 25Kn with a gate opening of 18mm
• Galvanized alloy steel scaffolding hook
• The scaffolding hook has a minimum breaking strength of 23 kN with a gate opening of 50.8mm
• Maximum arrest force of 6Kn
• The screwgate carabiner has a minimum breaking strength of 25Kn with a gate opening of 18mm

The MSA lanyards are available in web and kernmantel rope configurations with a variety of connectors. Energy-absorbing lanyards provide a means of connection between the fall arrest attachment of MSA full body harnesses and a qualified anchorage point. The energy absorber keeps fall arrest forces below 6 kN.

• Twin leg configuration
• The loops at the ends are protected by an abrasion resistant covering Prevents the webbing from being damaged by the metallic contact of the connector
• curved design of the gate of the scaffold hook Allows more comfortable grip
• 30mm Polyester webbing
• Galvanised alloy steel screw gate karabiner and scaffolding hook

The Scaffolding hook has a minimum breaking strength: 23 kN, Gate opening: 50.8 mm
The Screw gate Karabiner has a minimum breaking strength: 25 kN, Gate opening: 18 mm

• 35mm width Nylon tear webbing shock absorber

Conforms to EN 355:2002 Personal protective equipment against falls from a height. Energy absorbers

The MSA lanyards are available in web and kernmantel rope configurations with a variety of connectors. Energy-absorbing lanyards provide a means of connection between the fall arrest attachment of MSA full body harnesses and a qualified anchorage pont. The energy absorber keeps fall arrest forces below 6 kN.

• Single leg configuration, twin-leg options also available
• Leading edge approved for use in leading edge application
• Cross stich and a strong transparent covering sleeve to protect the ends and makes the stitches visible for easy inspection
• Abrasion resistant thimble at the end of the loops to prevent the rope from being damaged by the metallic contact of the connector
• A colour tracer strand that loses it colour in due course of time showing that the lanyard is now unfit for further use
• 11mm Nylon Kernmantel rope
• Galvanized alloy steel twist-lock carabiner
• The Carabiner has a minimum breaking strength of 23kN with a gate opening of 60mm
• Aluminum Alloy Scaffolding hook
• The Scaffolding hook has a minimum breaking strength of 23 kN with a gate opening of 16 mm
• Maximum arrest force of 6kN
• Conforms to EN 352:2002 Personal protective equipment against falls from a height. Energy absorbers

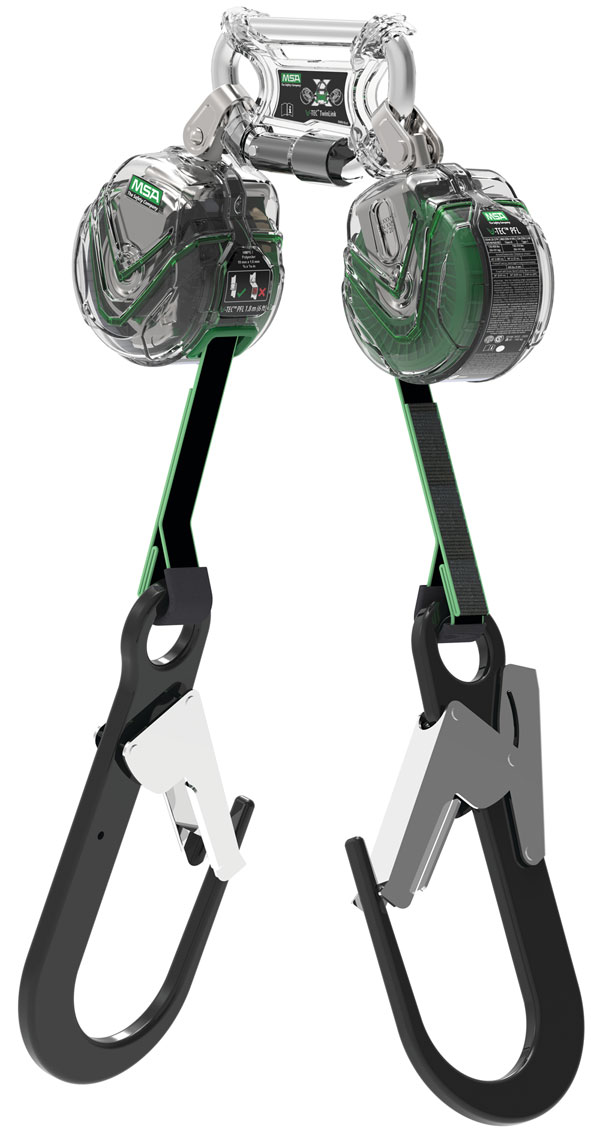

630111-00EU V-Tec Mini Personal Fall limiter 1.8M Aluminium Scaffold hook Twin Leg Description
The V-TEC 1.8M Mini retactable lanyard is the most compact & lightweight self-retracting lanyard ever developed using multiple spring radial energy-absorbing technology. This new design eliminates the need for an external energy-absorber outside of the housing making it the smallest personal fall limiter on the market.
The V-TEC Twin Mini uses a TwinLink to connect two Mini PFLs. This lightweight attachment allows the configuration to provide all the features of a Mini PFL, with greater mobility and continuous attachment, whilst working on complex structures.
• Integral energy absorber
• Requires zero recalibration or adjustment
• The energy absorber is completely sealed from external contaminants
• A fully rotating attachment point for complete flexibility –both 360° and 180° providing a free range of motion
• Structurally reinforced pawl mechanism through precision engineering
• highly durable polycarbonate case houses the SRL, and its transparency allows for easy visual inspection of critical internal components
• High quality components manufactured from high-grade stainless steel and engineered plastics
• Twin Leg
• Aluminium rebar lightweight hook anchorage point
• TwinLink connector harness connection
• 60-140KG including tool weight limit
• EN360:2002 Personal protective equipment against falls from a height. Retractable type fall arresters

• 2.0 Metres webbing.
• M10T Karabiners.
• EN 354 & EN 355.
